April 21, 2014

Quick installation guide for Percona Cloud Tools for MySQL

Here in Percona Support, we’re receiving several requests per day for help with Percona Cloud Tools installation steps.

So I decided to prepare a step-by-step example of the installation process with some comments based on experience. ¬†Percona Cloud Tools is a hosted service providing access to query performance insights for all MySQL uses. After a brief setup, you’ll unlock new information about your database and how to improve your applications. You can sign up here to request access to the free beta, currently under way.

Some notes

  • It’s recommended to do the installation under root.
  • If you’re installing pt-agent as root then .pt-agent.conf should be placed in root $HOME
  • You could became root with “sudo -s” command and in this case your homedir is still unchanged and not homedir of root user.
  • So I would strongly recommend to login as root or to “sudo -i” to become root and check if your HOME and PWD are the same: env | egrep -i ‘home=|pwd=’

Sign Up

Go to the URL and sign up (or log-in): https://cloud.percona.com/

Prepare

Copy your API key:
On this URL: https://cloud.percona.com/api-key
Or by menu: Agents -> API Key

pct-api-key

Percona-Toolkit Download

Download Percona-Toolkit:
http://www.percona.com/downloads/percona-toolkit/LATEST/
For example:

  • DEB: for Debian/Ubuntu like systems
  • RPM: for RedHat, CentOS

Percona-Toolkit Installation

CentOS:
yum install http://www.percona.com/redir/downloads/percona-toolkit/LATEST/RPM/percona-toolkit-2.2.6-1.noarch.rpm

Ubuntu:
wget http://www.percona.com/redir/downloads/percona-toolkit/LATEST/deb/percona-toolkit_2.2.6_all.deb
dpkg -i percona-toolkit_2.2.6_all.deb

pt-agent installation

Run this command:
pt-agent --install --user={mysql username} --password={password} --api-key={API Key copied from web site}

Note: add there your username, password and API Key

pt-agent installation output

You should see this:

Agent is installed

pt-agent configuration

Goto: https://cloud.percona.com/agents and select your newly created agent

Then enable Service:

  • Agents -> Services -> Query Analytics -> On (Push Off button and configure values)
  • Save

pct-agent-service

pct-enabled-agent-service

Done!

Now wait a few min, check Status Log: Agents -> select agent -> Status Log
You should see there: “Agent OK”

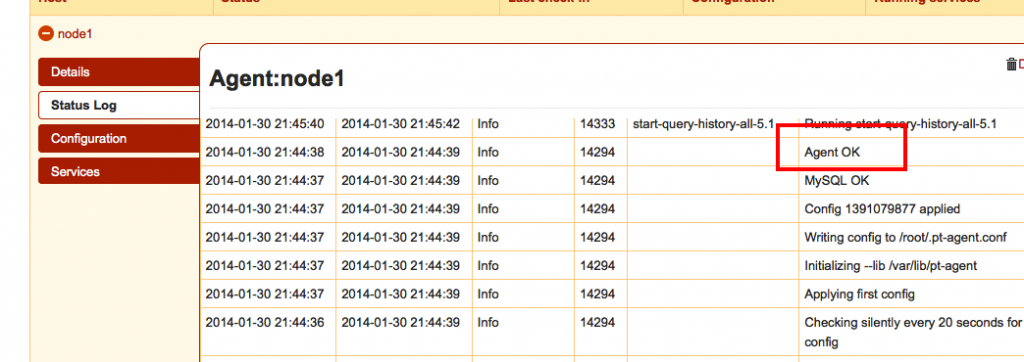

pct-agent-ok

Now wait (~3 min) until pt-agent will add jobs to crontab.
You should see there: “Services OK”

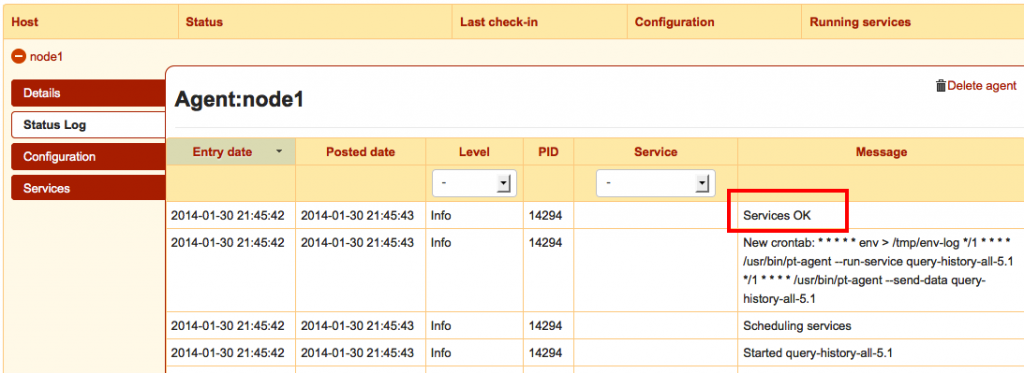

pct-service-ok

Then run some slow queries and wait (~3-5 min).
If everything is ok then you should see there “Exit: 200″

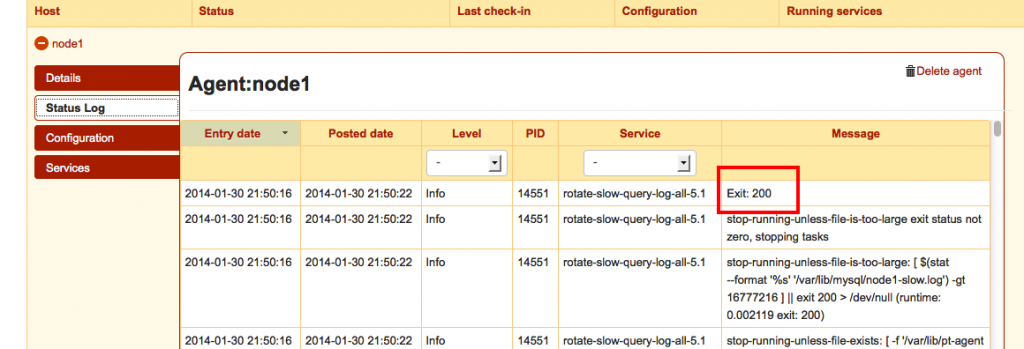

pct-exit-200

Now check Query Analytics.

pct-done

There is a “Help Me” button at the bottom of the page so you can ask for Support if you have any questions and our Support team will gladly help you.

pct-support

Enjoy!
